- $1,500.00

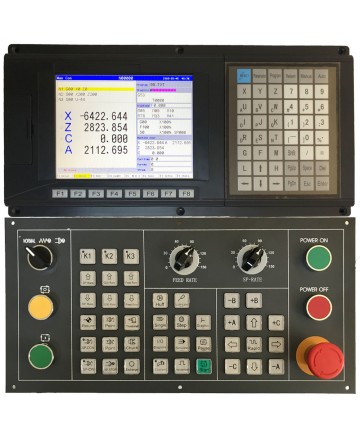

4 Axis Cnc Lathe Controller Falcon 1000
TURRET Tool Change available
Unit, keypad, handwheel and 5 meter signal cables are included in the set.
4 axis CNC LATHE Control Unit The unit, handwheel and 5 meters signal cables are included in the set.
Falcon 1000 TDca-4 CNC Control Unit Features
• It is a 4-axis product.
• Support PLC has macro function and automatic tool change function.
• It has 128 MB of memory and 100 Mb of storage.
• While the maximum speed is 300m/min; feeding speed is 150m/min.
• Adapted servo spindle can realize screw machining.
• It has high anti-jamming switch power. (220VAC -> 24V & 5V DC)
• Many PLC programs can be freely edited.
• Supports file operation, system configuration and software upgrades on flash disk thanks to its USB interface.
• By means of the parameter, the screen can be displayed in two different languages, Chinese and English.
• Two channels have 0 ~ 10V analog voltage output.
• It has a functional ARM microprocessor. In this way, it can provide 32-bit high performance with low power consumption.
• It has an English interface.
• I/O: 56 * 32, freely editable.
4 Axis Lathe CNC Control Unit
Falcon 1000 4 Axis CNC Control System G Code List
